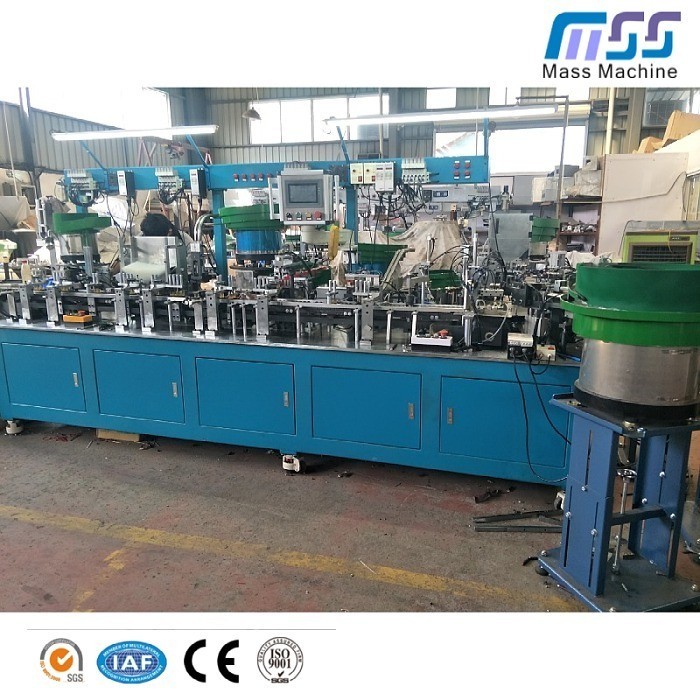

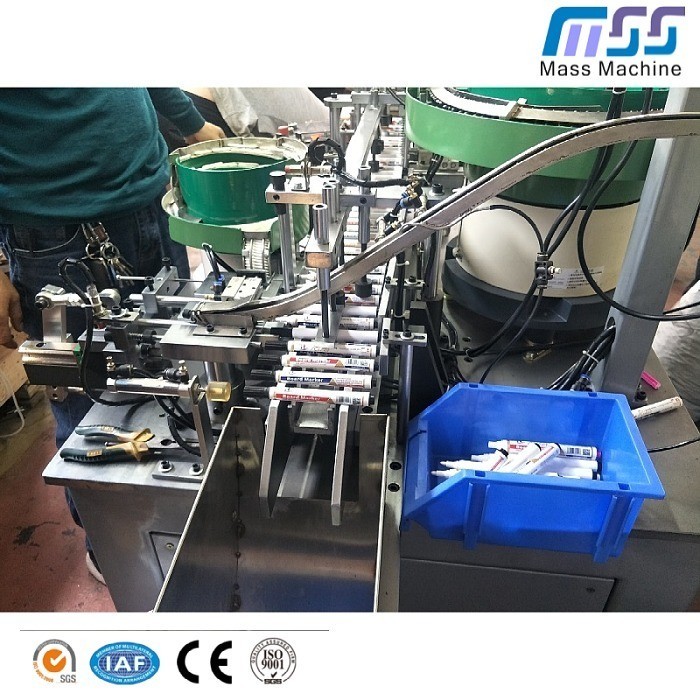

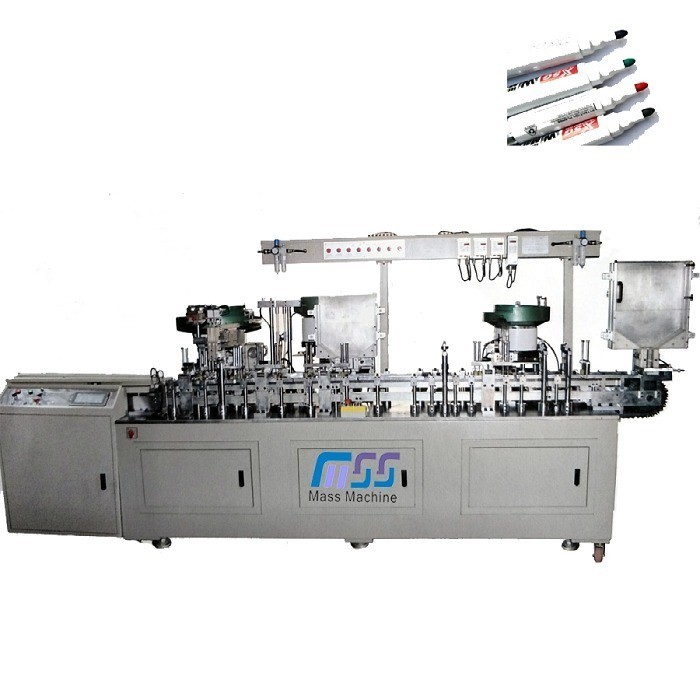

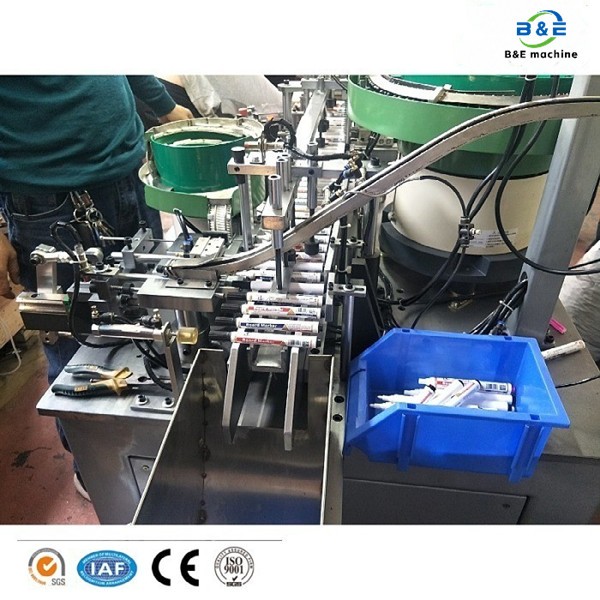

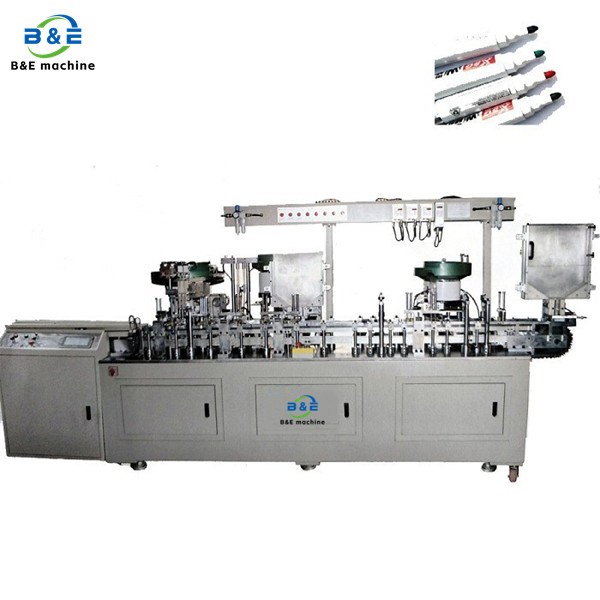

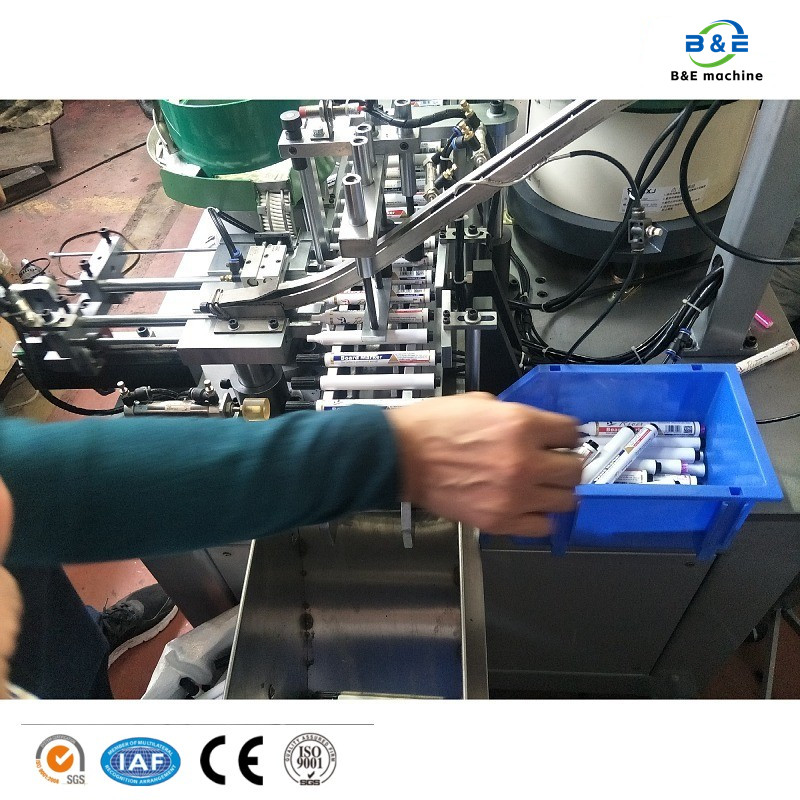

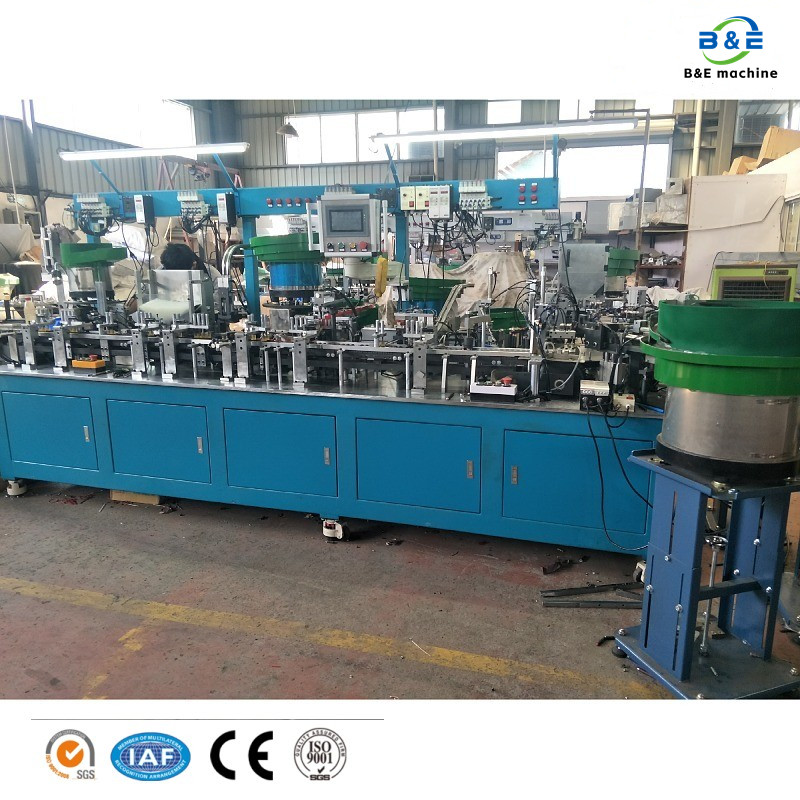

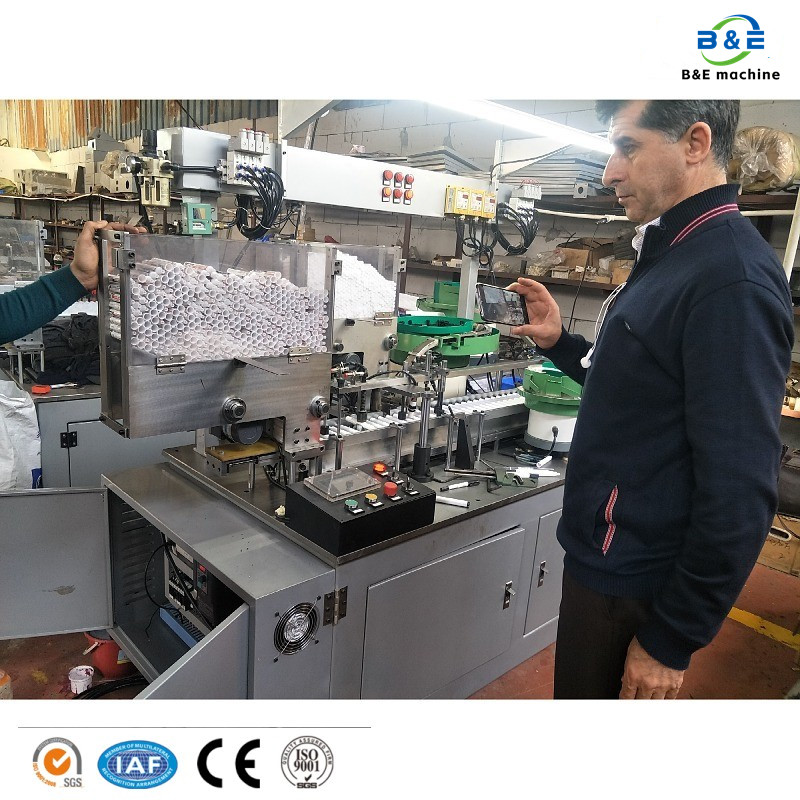

Marker Pen Assembly Machine

Product Description

Main features:

This machine adopts the man-machine interface of the machine by PLC microcomputer and high precision sensor control

and detection, using inverter and encoder to make the machine running at high speed to ensure a stable and orderly work,

 this series of models with JB industry standard design, by mechanical linkages, pneumatic auxiliary design concept, driving

part adopts the Germany IGUS mostly free of oil bearing, reached the JY education stationery industry standards, all electrical

parts are imported components, frame by phosphating surface spraying thermosetting plastic powder processing, makes the

machine to adapt to any environment from corrosion; The design of this series of models in line with the principle of energy

saving, improve productivity, and reduce the input of manpower, can effectively make users get higher economic benefits.

Ball-point pen making machine set automatically installed hot stamping, automatic feeding, automatic assembly, automatic

production to various agencies reflect clearly, reference for beginners and learning, and study the selection of standard equipment

Parameter:

1) equipment installation dimensions:

2) length: 3000 mm width: 1350 mm height: 1720 mm (mainly equipment actual) site required for

3) air supply:0.5mpa ~ 0.7mpa

4) power supply: general specification of AC 220V 380V equipment

How big does it take to build a pen machine factory?

Answer: make pen workshop area big, small all but, cannot under 50 square metre commonly. A pen production line covers

an area of about 20 square meters, plus at least 20 square meters for stacking, feeding and packaging of finished products.

 If the production line above BE-YZ200 is purchased, or several production lines are put on at the same time, the plant area

shall be expanded correspondingly.

Introduction – Who We Are & What We Offer

B&E is a leading manufacturer of pen manufacturing machine Factory, specializing in custom solutions for all kind or  pen .

We provide the whole  pen production line such as ball pen barrel making machine,Ball pen barrel injection mould,pen assembly

 machine,pen barrel labeling,package mahine,pen refiller  , and more. All products are made from our reliabel professional team.

Whether for pen making machine, product packaging, or industrial equipment, we deliver cost-effective and the whole solutions

 tailored to your specific needs.

working speed:50-60pcs/min

Work station:double type

power:1.5kw

air : 5-6kgf/cm²

Working type :Automatically

Worker:1 people
