25L Plastic Bottle Extrusion Blowing Machine

Extrusion blow molding machine is widely used to produce all kinds of the hollow plastic containers for foods, toys, beverages, medicines, chemical products, detergents, water bottles, milk bottles, oil bottles, plastic balls, cosmetic bottles, lubricant bottles, plastic containers. The machines are low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefit.

Extrusion blow molding machine:

Extrusion blow molding machine is widely used to produce all kinds of the hollow plastic containers for foods, toys,

beverages, medicines, chemical products, detergents, water bottles, milk bottles, oil bottles, plastic balls, cosmetic bottles,

lubricant bottles, plastic containers. The machines are low investment, high efficiency, quick and safe operation, easy for

trouble shooting, maintenance and other benefit. We help you on marketing research, products selection and factory layout,

ensure your investment with a big profit feedback. We are the professional end supplier in blow molding field, supporting you

from new project consultation stage to after sales service. We are your professional blow-molding working team and partner,

would help our customer grow up and get win-win benefit together.

Machine Paramenters:

Specification	Unit	KSA80A-30L	KSC82-30L
Suitable Material		PE PP HDPE PVC..	PC
Max Product Volume	L	30	30
Dry Cycle	Pcs/h	650	650
Machine Size	m	4.52.43.5	5.32.74.5
Machine Weight	Tons	11.5	11.6
Clamping Force	Kn	215	220
Platen Distance	mm	400-900	400-900
Template Size(W*H)	mm	760*660	760*660
Max Mold Size(W*H)	mm	600*700	600*700
Screw Diameter	mm	80	82
Screw L/D	L/D	25	30
Screw Driver Power	Kw	30	45
Screw Heating Power	Kw	16	34
Screw Screw Heating Zone	Zone	4	5
HDPE Output	Kg/h	100	150(PC)
Accumulator Capacity	L	4.5	1.9
No of Die Heating Zone	Zone	4	4
Powe of Heating Die	Kw	12	8.7
Max Single Die Diameter	mm	300	130
Total Power	Kw	73	87.7
Oil Pump Motor	Kw	15	45
Blowing Pressure	Mpa	0.8	1.0
Air Consumption	M3/min	0.8	0.8
Cooling Water Pressure	Mpa	0.3	0.3
Water Consumption	L/min	60	130
Average Power Consumption	Kw	31.5	31.5

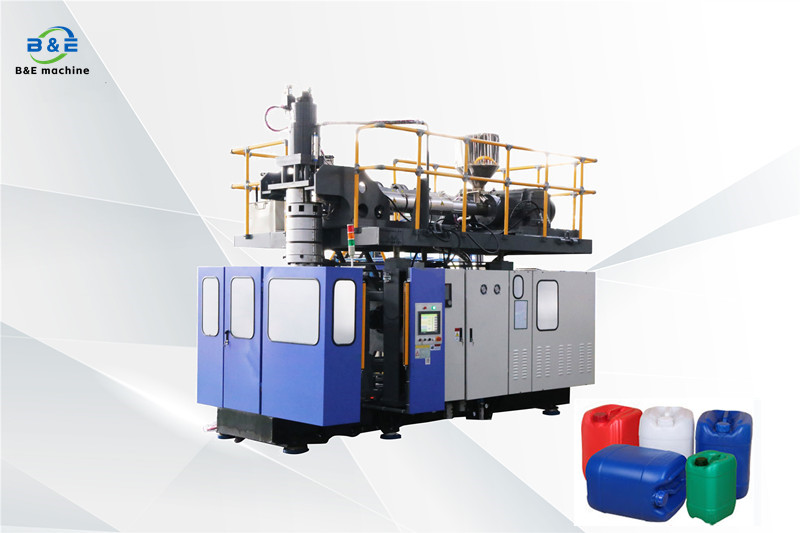

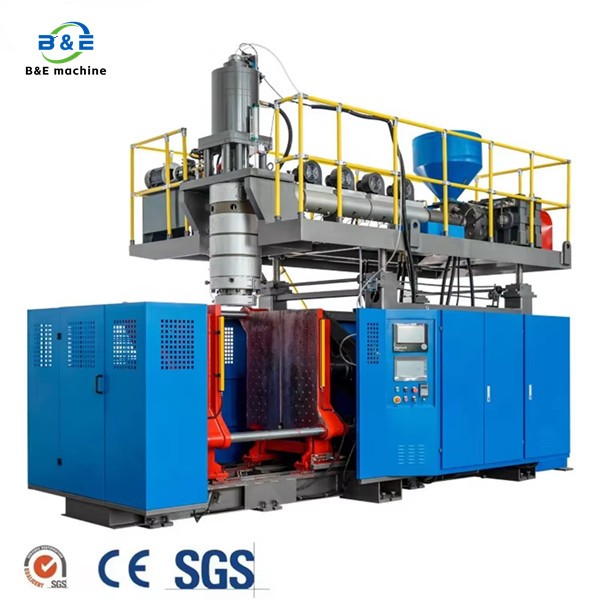

25L Bottle extrusion blowing machine.jpg

Extrusion Blowing machine work progress.jpg

Machine Components:

Machine component

We choose famous brand component for our machine. make sure the machine working stable and durable.Each machine

would be tested over 72 hours automatically, to make sure every machine component are in good condition, would not

bring any trouble to our customer.

Machine Application:

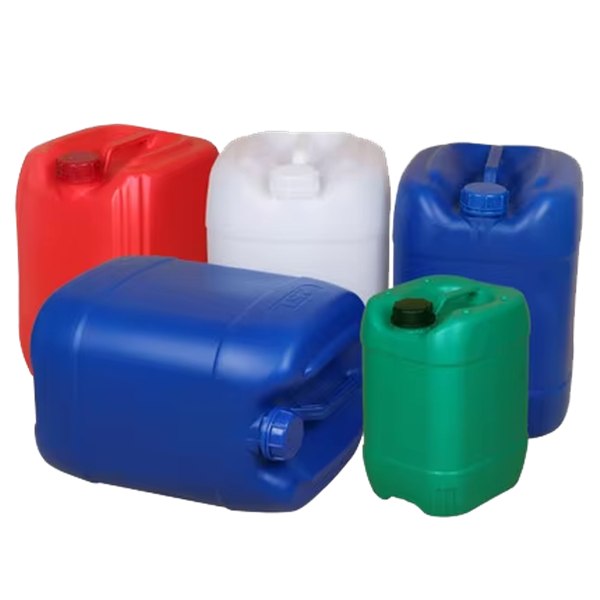

Plastic Bottle type.png

Plastic bottle type2.jpg

plastic bottle sample3.jpg

plastic bottle sample3.png

Machine Details

Plastic bottle machine part Description.png

plastic bottle blowing machine Description2 .png

Other Blowing product.jpg

FAQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will

vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's B&E's advantage?

B&E provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.
