1 Out of 32 water bottle series tube embryo mold

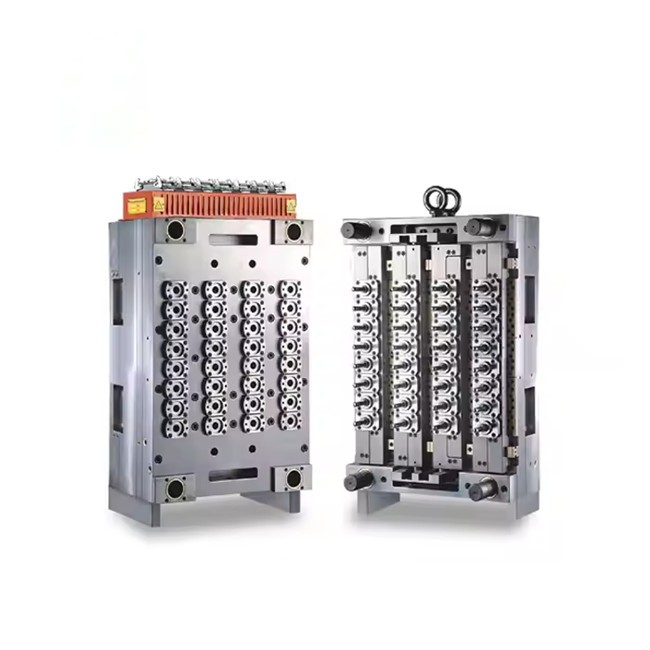

32cavities Pin Valve Hot Runner Pet Preform Mould

BRIEF INTRODUCTION:

1. Tube blank is designed with the help of computer, which surely contributes to the increasing of yield of bottle

2. Using international advanced two stage double taper locating technology. Each cavity self-locks independently to ensure low decent ration of product.

3. Core and cavity are made of special mould steel after preheating treatment in the original factory in Sweden. Individual temperature control for all cavities.

4. Lip cavity is made of imported nitrated steel, which is of high hardness and long service life, in accordance with international Standard.

5. The excellent hot runner design assures uniform heating and greatly improves the quality of plastic product.

6. No cutting of gate is employed to reduce the labor intensity. Standard

Inter-changeable mould components.

7. The life of mould is more than 2 million times.

l Brief Introduction:

² Keep 500°C about 36 hours in vacuum station to eliminate the stress, make sure the molding board

 steady after long time use.

² Slipper block use HUSKY type, with material of steel P20, which is highly anticorrosion, all the move

 parts used advanced ion nitrating treatment, the surface hardness is HRC48-52.
